| 브랜드 이름: | Lei Kan |
| 모델 번호: | LKXR-RD106 |

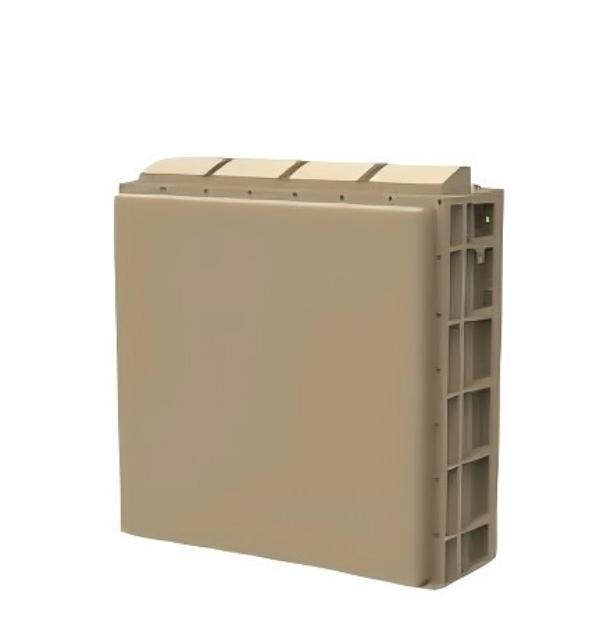

Ⅰ. Product Overview:
The LKXR-RD106 series is an X-band, medium-range phased-array radar family that uses all-solid-state, fully coherent pulse-Doppler technology enhanced by machine-learning and AI-based recognition. Operating in two-dimensional electronic scan with Track-While-Scan (TAS) capability, the system detects, tracks and classifies “low, slow & small” (LSS) targets day and night, in all weather. Three performance tiers—3 km, 5 km and 8 km—are available under the same compact single-face-array hardware concept.
Ⅱ. Product Features
• AI-Enhanced Recognition: Machine-learning algorithms suppress clutter and deliver reliable detection down to 0.01 m² RCS.
• Three Range Classes: Choose 3 km, 5 km or 8 km coverage to match mission distance and budget.
• Ultra-Compact Single-Face Array: All variants <15 kg and <335 mm × 315 mm × 160 mm—fits vehicles, rooftops or tripods.
• 2-D Electronic Scan ±45° Az / 0°–30° El (configurable elevation) with TAS multi-target tracking.
• Dual Power Options: DC 24 V or AC 220 V for rapid field deployment.
• Wide Environmental Tolerance: –40 °C to +70 °C operating range.
Ⅲ. Qualification
|
Specification |
106A |
106B |
106C |
|
Range (RCS 0.01 m²) |
≥5 km |
≥8 km |
≥3 km |
|
Blind Zone |
≤200 m |
≤200 m |
≤100 m |
|
Coverage |
Az ±45° |
Az ±45° |
Az ±45° |
|
Tracking |
TAS ≥6 targets |
TAS ≥6 targets |
TAS ≥6 targets |
|
Velocity Range |
1–100 m/s |
1–100 m/s |
1–100 m/s |
|
Accuracy (Range / Az / El) |
<10 m / <0.5° / <0.5° |
<10 m / <0.5° / <0.5° |
<10 m / <0.5° / <1° |
|
Update Rate |
Search ≤3 s |
TAS ≤0.5 s |
Search ≤3.5 s |
|
Interface |
Ethernet |
Ethernet |
Ethernet |
|
Weight |
≤13 kg |
≤15 kg |
≤13 kg |
|
Power Supply |
DC 24 V / AC 220 V |
DC 24 V / AC 220 V |
DC 24 V / AC 220 V |
|
Power Consumption |
≤300 W |
≤500 W |
≤220 W |
|
Dimensions (mm) |
335 × 315 × 133 |
335 × 315 × 160 |
335 × 315 × 133 |
|
Operating Temperature |
–40 °C～+70 °C |
–40 °C～+60 °C |
–40 °C～+70 °C |
Ⅳ. Selling Points
• One Size, Three Powers: Same lightweight aperture scales from 3 km to 8 km—no extra training, spares or logistics.
• 100–200 m Ultra-Short Blind Zone: Captures threats right at the perimeter.
• Sub-Second TAS Refresh: ≤0.5 s target update ensures zero-latency cueing for intercept.
• Ultra-Low Power: 220–500 W consumption slashes energy and cooling costs.
• True Carry-and-Deploy: ≤15 kg and suitcase footprint—no crane, no special mount.
