| 브랜드 이름: | LeiKan |
| 모델 번호: | LKST-NSC010H |
| 문서: | Navigation Decoy One-Contr...ce.pdf |

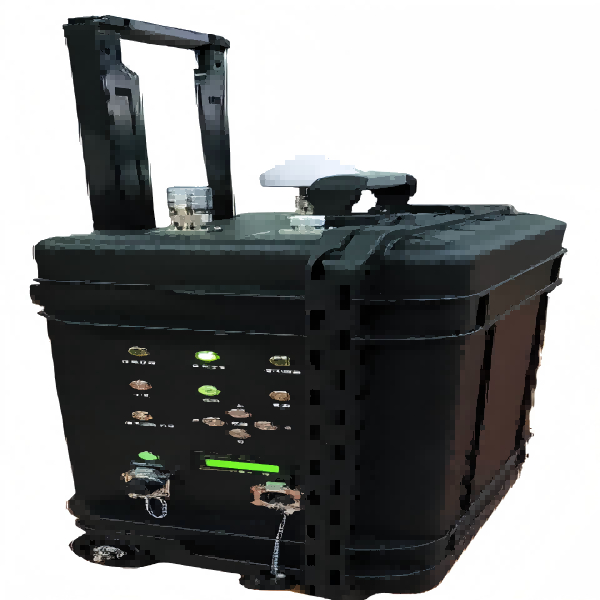

Ⅰ. Product Presentation
The portable mobile navigation spoofing device is suitable for various drone defense application scenarios. By broadcasting simulated navigation satellite signals through a navigation satellite simulation source, it enables the drone's navigation signal receiver to output positioning results based on our simulated signals, thereby causing the drone's flight control module to control the drone's movements as expected under the influence of the navigation spoofing signals.
Ⅱ. Equipment Features
1. Supports the signal reception and simulated emission functions of common frequency points of the world's four major navigation satellite systems.
2. Achieves time synchronization and ephemeris synchronization with in - orbit navigation satellites, and automatically shields co - frequency interference.
3. It can spoof the navigation of drones that rely on satellite navigation and positioning systems, achieving objectives such as forced landing of drones, heading induction, prohibition of takeoff, and interference with navigation satellite signals.
4. Supports control of the device's operation and functional modes through external buttons, including signal on/off, navigation satellite signal interference, heading induction (driving away), no - fly zones, circular motion, and simulated crashes.
Ⅲ. Product Specifications
|
Parameter Name |
Parameter Value |
|
Working frequency band |
GPS-L1:1575.42MHz±1.023MHz |
|
GLONASS-L1:1602MHz+N*5625kHz±511kHz(N takes-7-6) |
|
|
Galileo-E1:1575.42MHz±12.276MHz |
|
|
BDS-B1:1561.098MHz±2.046MHz |
|
|
Customizable |
|
|
Work pattern |
Signal Type: Real-time generation of GPS-L1 and GLONASS-L1 spoofing signals, with optional generation of Galileo-E1 and BDS-B1 spoofing signals. |
|
Deception distance |
0.5-1km (10mW transmission power) |
|
The effective range can be increased by increasing the transmission power |
|
|
Response time |
≤10s (within the effective range of action) |
|
Effective Angle |
Horizontal: 360°, vertical: 0-90° |
|
Number of drones countered simultaneously |
Infinite |
|
Signal transmission power |
10mW (EIRP) |
|
Power-on startup time |
30s |
|
Endurance time |
≥24h |
|
Charging time |
≤6h |
|
Size |
≥200m |
|
Remote control distance |
550mm*355mm*235mm |
|
Weight |
≤15Kg |
|
Protection level |
IP65 |
